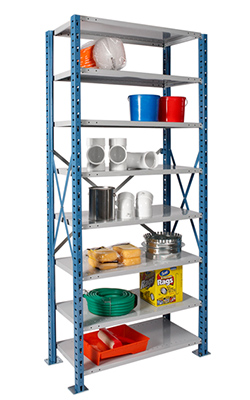

Good for Multilevels and Mezzanines.

H-Post™ - High Capacity Shelving

H-Post High Capacity Shelving is part of the HI-Tech Shelving System and is ideal when additional strength is required for any shelving installation. It is also recommended for multi-level high-rise applications.

Hi-Tech H-Post shelving systems have been specially designed to allow for fast and easy assembly.

Alt
Warranty:
1 Year

H-Posts are fabricated from 14 gauge cold rolled steel and formed into a unique tubular design to provide more than twice the load capacity compared to standard posts.

Hi-Tech Shelving is a complete shelving line with the strength needed to handle most industrial applications with the versatility needed for today's modern facilities. Every shelving unit is designed and engineered to handle daily use for a lifetime without losing its integrity.

A full complement of accessories including full dividers, partial dividers, label holders, swinging doors, post splices for multilevel systems and foot plates are available to complete your steel shelf system.

QUICKSHIP: 5 day shipping on all in stock shelving!

All Hi-Tech™ shelving comes in starter and/or adder units to allow for customization to any specification. In addition to free-standing, the Hi-Tech steel shelving units can be bolted side by side or back to back to create the best storage solution for your garage, warehouse, storage unit, stock room or other space.

Each Hi-Tech metal heavy-duty shelf has a tubular welded box beam in front and rear for maximum strength, exclusive triple bend side flanges for even more strength, lapped and welded corners, and the shelves are punched to accept shelf dividers. Each shelf is installed using only 4 shelf clips and can be installed together with both beaded front and angle back posts as well as T-posts and H-posts. Hi-Tech Steel Shelving is perfect for most medium-duty and heavy-duty product, tool and gear storage.

Colors:

Color Notes:
Marine Blue Posts with Platinum Shelves
Alt
Alt

Open Starter units include:
four posts, one back sway brace assembly, two side sway brace assemblies, and 5-8 shelves.

Alt

Open Adder units include:
two posts, one back sway brace assembly, one side sway brace assembly, and 5-8 shelves.

Alt

Closed Starter units include:
four posts, one back panel assembly, two side panel assemblies, and 5-8 shelves.

Alt

Closed Adder units include:
two posts, one back panel assembly, one side panel assembly, and 5-8 shelves.

Browse Photos

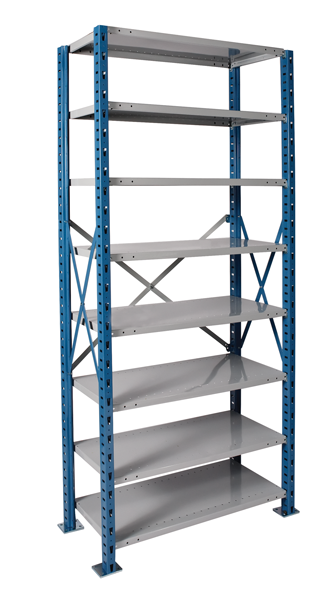

8 Shelf Open Shelving

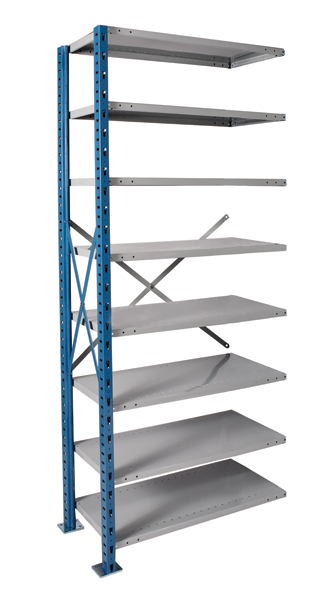

8 Shelf Open Adder Unit

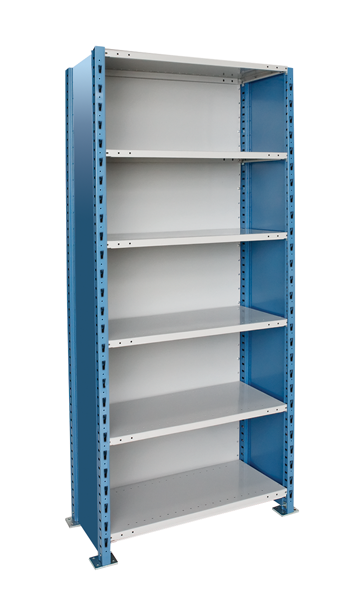

6 Shelf Closed Shelving

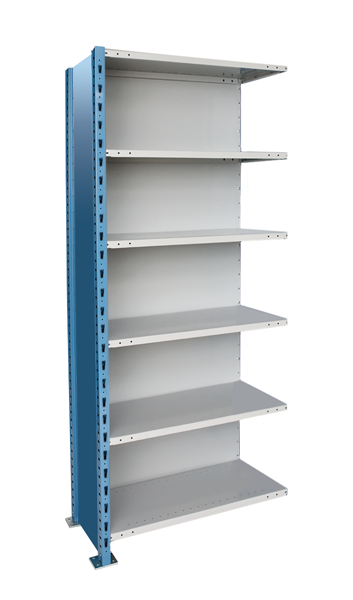

6 Shelf Closed Adder Unit
H-Post High-Capacity Shelving
H-Post High-Capacity Shelving
H-Post High-Capacity Shelving
H-Post High-Capacity Shelving
H-Post High-Capacity Shelving
H-Post High-Capacity Shelving
H-Post High-Capacity Shelving
H-Post High-Capacity Shelving
H-Post High-Capacity Shelving
H-Post High-Capacity Shelving
H-Post High-Capacity Shelving
H-Post High-Capacity Shelving
SKU Shelving Type Widthsort descending Height Depth Number of Shelves
AH5510-1807 Adder 36 87 18 5
AH5510-2407 Adder 36 87 24 5
AH5511-1807 Adder 36 87 18 6
AH5511-2407 Adder 36 87 24 6
AH5513-1807 Adder 36 87 18 8
AH5513-2407 Adder 36 87 24 8
H5510-1807 Starter 36 87 18 5
H5510-2407 Starter 36 87 24 5
H5511-1807 Starter 36 87 18 6
H5511-2407 Starter 36 87 24 6
H5513-1807 Starter 36 87 18 8
H5513-2407 Starter 36 87 24 8
AH5510-1810 Adder 36 123 18 5
AH5511-1810 Adder 36 123 18 6
AH5513-1810 Adder 36 123 18 8
H5510-1810 Starter 36 123 18 5
H5511-1810 Starter 36 123 18 6
H5513-1810 Starter 36 123 18 8
AH5710-1807 Adder 48 87 18 5
AH5710-2407 Adder 48 87 24 5
AH5711-1807 Adder 48 87 18 6
AH5711-2407 Adder 48 87 24 6
AH5713-1807 Adder 48 87 18 8
AH5713-2407 Adder 48 87 24 8
H5710-1807 Starter 48 87 18 5
H5710-2407 Starter 48 87 24 5
H5711-1807 Starter 48 87 18 6
H5711-2407 Starter 48 87 24 6
H5713-1807 Starter 48 87 18 8
H5713-2407 Starter 48 87 24 8
AH5510-2410 Adder 48 123 24 5
AH5511-2410 Adder 48 123 24 6
AH5513-2410 Adder 48 123 24 8
AH5710-1810 Adder 48 123 18 5
AH5710-2410 Adder 48 123 24 5
AH5711-1810 Adder 48 123 18 6
AH5711-2410 Adder 48 123 24 6
AH5713-1810 Adder 48 123 18 8
AH5713-2410 Adder 48 123 24 8
H5510-2410 Starter 48 123 24 5
H5511-2410 Starter 48 123 24 6
H5513-2410 Starter 48 123 24 8
H5710-1810 Starter 48 123 18 5
H5710-2410 Starter 48 123 24 5
H5711-1810 Starter 48 123 18 6
H5711-2410 Starter 48 123 24 6
H5713-1810 Starter 48 123 18 8
H5713-2410 Starter 48 123 24 8
SKU Shelving Type Widthsort descending Height Depth Number of Shelves
AH7713-1807 Adder 36 87 18 8
H7510-1807 Starter 36 87 18 5
H7510-2407 Starter 36 87 24 5
H7511-1807 Starter 36 87 18 6
H7511-2407 Starter 36 87 24 6
H7513-1807 Starter 36 87 18 8
H7513-2407 Starter 36 87 24 8
H7710-1807 Starter 36 87 18 5
H7711-1807 Starter 36 87 18 6
H7713-1807 Starter 36 87 18 8
AH7510-1807 Adder 36 87 18 5
AH7510-2407 Adder 36 87 24 5
AH7511-1807 Adder 36 87 18 6
AH7511-2407 Adder 36 87 24 6
AH7513-1807 Adder 36 87 18 8
AH7513-2407 Adder 36 87 24 8
AH7710-1807 Adder 36 87 18 5
AH7711-1807 Adder 36 87 18 6
H7510-1810 Starter 36 123 18 5
H7510-2410 Starter 36 123 24 5
H7511-1810 Starter 36 123 18 6
H7511-2410 Starter 36 123 24 6
H7513-1810 Starter 36 123 18 8
H7513-2410 Starter 36 123 24 8
AH7510-1810 Adder 36 123 18 5
AH7510-2410 Adder 36 123 24 5
AH7511-1810 Adder 36 123 18 6
AH7511-2410 Adder 36 123 24 6
AH7513-1810 Adder 36 123 18 8
AH7513-2410 Adder 36 123 24 8
AH7713-2407 Adder 48 87 24 8
H7710-2407 Starter 48 87 24 5
H7711-2407 Starter 48 87 24 6
H7713-2407 Starter 48 87 24 8
AH7710-2407 Adder 48 87 24 5
AH7711-2407 Adder 48 87 24 6
AH7711-2410 Adder 48 123 24 6
AH7713-1810 Adder 48 123 18 8
AH7713-2410 Adder 48 123 24 8
H7710-1810 Starter 48 123 18 5
H7710-2410 Starter 48 123 24 5
H7711-1810 Starter 48 123 18 6
H7711-2410 Starter 48 123 24 6
H7713-1810 Starter 48 123 18 8
H7713-2410 Starter 48 123 24 8
AH7710-1810 Adder 48 123 18 5
AH7710-2410 Adder 48 123 24 5
AH7711-1810 Adder 48 123 18 6
SKU Shelving Type Widthsort descending Height Depth Number of Shelves
AH5520-1807 Adder 36 87 18 5
AH5520-2407 Adder 36 87 24 5
AH5521-1807 Adder 36 87 18 6
AH5521-2407 Adder 36 87 24 6
AH5523-1807 Adder 36 87 18 8
AH5523-2407 Adder 36 87 24 8
H5520-1807 Starter 36 87 18 5
H5520-2407 Starter 36 87 24 5
H5521-1807 Starter 36 87 18 6
H5521-2407 Starter 36 87 24 6
H5523-1807 Starter 36 87 18 8
H5523-2407 Starter 36 87 24 8
AH5520-1810 Adder 36 123 18 5
AH5521-1810 Adder 36 123 18 6
AH5523-1810 Adder 36 123 18 8
H5520-1810 Starter 36 123 18 5
H5521-1810 Starter 36 123 18 6
H5523-1810 Starter 36 123 18 8
AH5720-1807 Adder 48 87 18 5
AH5720-2407 Adder 48 87 24 5
AH5721-1807 Adder 48 87 18 6
AH5721-2407 Adder 48 87 24 6
AH5723-1807 Adder 48 87 18 8
AH5723-2407 Adder 48 87 24 8
H5720-1807 Starter 48 87 18 5
H5720-2407 Starter 48 87 24 5
H5721-1807 Starter 48 87 18 6
H5721-2407 Starter 48 87 24 6
H5723-1807 Starter 48 87 18 8
H5723-2407 Starter 48 87 24 8
AH5520-2410 Adder 48 123 24 5
AH5521-2410 Adder 48 123 24 6
AH5523-2410 Adder 48 123 24 8
AH5720-1810 Adder 48 123 18 5
AH5720-2410 Adder 48 123 24 5
AH5721-1810 Adder 48 123 18 6
AH5721-2410 Adder 48 123 24 6
AH5723-1810 Adder 48 123 18 8
AH5723-2410 Adder 48 123 24 8
H5520-2410 Starter 48 123 24 5
H5521-2410 Starter 48 123 24 6
H5523-2410 Starter 48 123 24 8
H5720-1810 Starter 48 123 18 5
H5720-2410 Starter 48 123 24 5
H5721-1810 Starter 48 123 18 6
H5721-2410 Starter 48 123 24 6
H5723-1810 Starter 48 123 18 8
H5723-2410 Starter 48 123 24 8
SKU Shelving Type Widthsort descending Height Depth Number of Shelves
H7520-2407 Starter 36 87 24 5
H7521-1807 Starter 36 87 18 6
H7521-2407 Starter 36 87 24 6
H7523-1807 Starter 36 87 18 8
H7523-2407 Starter 36 87 24 8
H7720-1807 Starter 36 87 18 5
H7721-1807 Starter 36 87 18 6
H7723-1807 Starter 36 87 18 8
AH7520-1810 Adder 36 123 18 5
AH7520-2410 Adder 36 123 24 5
AH7521-1810 Adder 36 123 18 6
AH7521-2410 Adder 36 123 24 6
AH7523-1810 Adder 36 123 18 8
AH7523-2410 Adder 36 123 24 8
AH7723-1807 Adder 36 87 18 8
H7520-1810 Starter 36 123 18 5
H7520-2410 Starter 36 123 24 5
H7521-1810 Starter 36 123 18 6
H7521-2410 Starter 36 123 24 6
H7523-1810 Starter 36 123 18 8
H7523-2410 Starter 36 123 24 8
AH7520-2407 Adder 36 87 24 5
AH7521-1807 Adder 36 87 18 6
AH7521-2407 Adder 36 87 24 6
AH7523-1807 Adder 36 87 18 8
AH7523-2407 Adder 36 87 24 8
AH7720-1807 Adder 36 87 18 5
AH7721-1807 Adder 36 87 18 6
AH7723-1810 Adder 48 123 18 8
AH7723-2410 Adder 48 123 24 8
H7720-2407 Starter 48 87 24 5
H7721-2407 Starter 48 87 24 6
H7723-2407 Starter 48 87 24 8
AH7720-1810 Adder 48 123 18 5
AH7720-2410 Adder 48 123 24 5
AH7721-1810 Adder 48 123 18 6
AH7721-2410 Adder 48 123 24 6
AH7723-2407 Adder 48 87 24 8
H7720-1810 Starter 48 123 18 5
H7720-2410 Starter 48 123 24 5
H7721-1810 Starter 48 123 18 6
H7721-2410 Starter 48 123 24 6
H7723-1810 Starter 48 123 18 8
H7723-2410 Starter 48 123 24 8
AH7720-2407 Adder 48 87 24 5
AH7721-2407 Adder 48 87 24 6
Alt

Heavy-Duty Shelves

  • Tubular welded box beam front and rear for maximum strength
  • Exclusive triple bend side flanges for added strength
  • Lapped and welded corners
  • Top of shelf is punched to accept shelf dividers
  • Uses four one-piece shelf clips per shelf
  • Can be installed together with both
Alt

One Piece Shelf Clip

  • Each shelf requires four of these sturdy and compact clips
  • Clips key firmly into post slots to hold shelves securely in place
  • Fits Beaded Front, Angle Back Posts, and T-Posts
  • Provides independent shelf positioning on 1-1/2" centers
  • Non-intrusive clip sits flush with inside edge of front posts
Alt

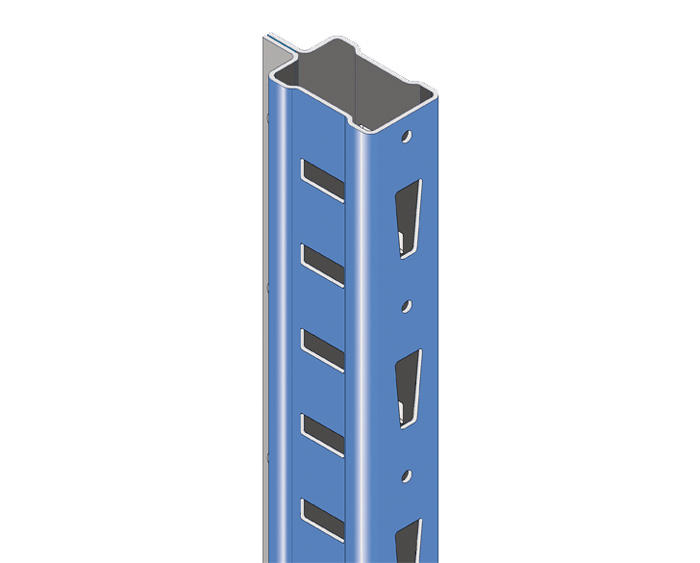

H-Post

  • Designed for high-density applications
  • More than twice the capacity of standard posts
  • Used at front and back
  • Used with standard Hi-Tech components

Base Plate

All Models are shown with the standard base plate that provides a strong and secure anchoring point

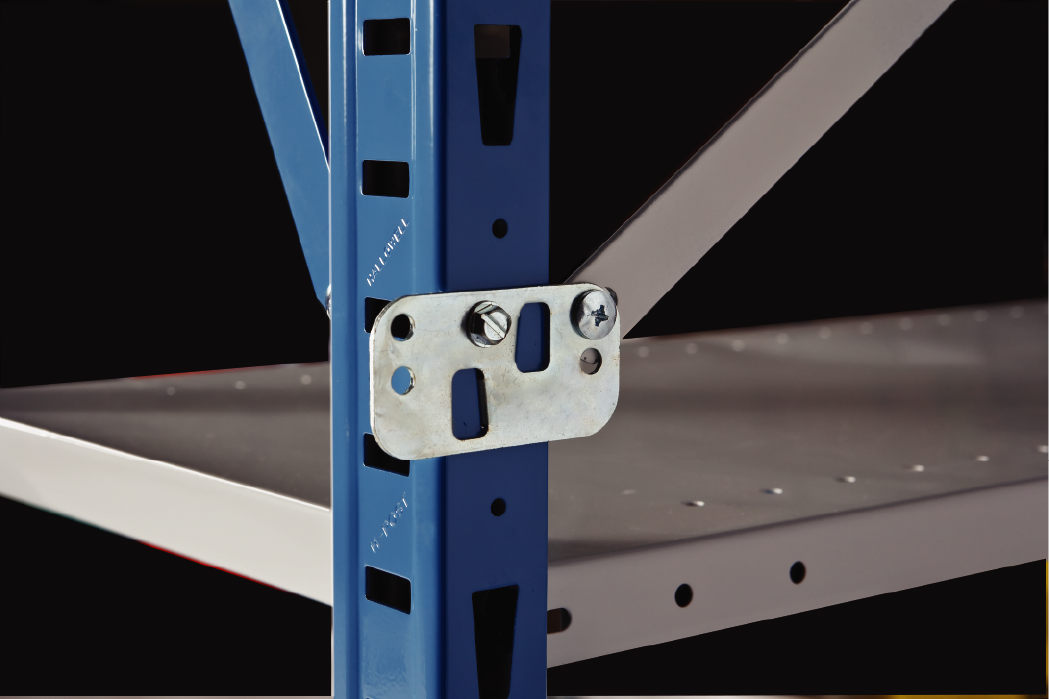

Special Triple Brace Clip

Special Triple Brace Clip

Provides a strong and ridged anchor point for the cross braces.
