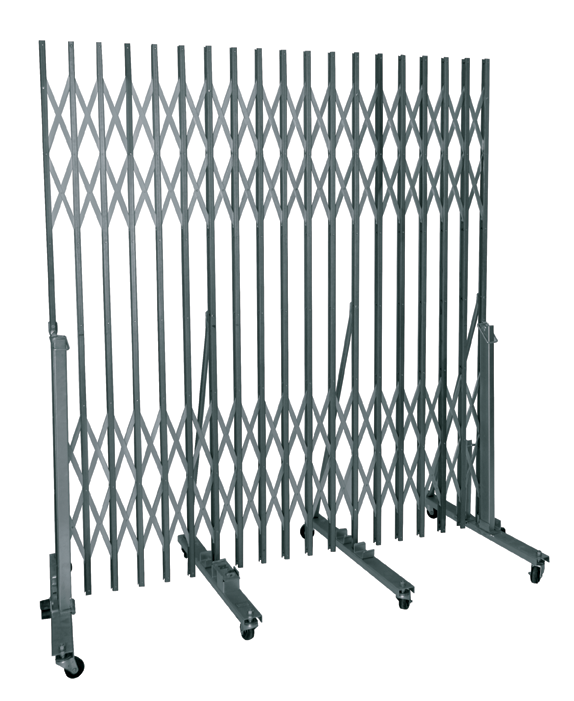

Portable Foot-Traffic Gates

SECURITY • TRAFFIC CONTROL • PORTABILITY
• In Stock for shipment within 5 days of receipt of order
• Quick and easy installation. Install between two walls instantly without anchors to walls or floor
• Simplified, patented pressure lock system
• Floor anchors are not required but are available for special installations
• Compact, fold-up size and heavy duty swivel casters make moving and storage easy
• Plated finish
• Padlock hasp is standard
• Cylinder locks are available for additional security
• Two or more gates can be joined together for large expanse

Superior Portable Gates
Features:
  • SCHOOLS
  • SHOPPING MALLS
  • RECREATION CENTERS
  • FACTORIES
  • LIBRARIES
  • HOSPITALS
  • OFFICE BUILDINGS
  • FINANCIAL INSTITUTIONS
  • THEATERS
  • MUSEUMS
Warranty:
1 Year

EXCLUSIVE SUPERIOR®
PRESSURE LOCK SYSTEM WORKS LIKE THIS:

  1. Raise unit retainer channel to vertical position and secure
  2. Extend gate until rubber bumpers touch both walls
  3. Lower the male lock channel (with pin) until it rests on carriage channels within guides and locking bracket
  4. Lower female lock channel (with adjustment holes) until it rests within the male lock channel with pin. Pin need not engage a hole in female lock channel
  5. Raise both channels until pin engages the hole immediately to the right. Applying moderate pressure, push both channels down until they rest within guides and locking bracket. Lock in position

Five sizes to accommodate 3’-6” wide to 18’-0” wide conditions.

Connect multiple gates together for wider applications.

Colors:

Superior Portable Gates

Download Documents:

Browse Photos

Model For Openings Collapsed Size Height Weight (lbs)
P601-06 3' 6" - 6' 19" x 30" 78 1/2" 193
P601-09 6' - 9' 19" x 30" 197
P601-12 7' - 12' 24" x 30" 254
P601-15 11' - 15' 30" x 30" 311
P601-18 13' - 18' 30" x 30" 374
PG-CL Cylinder Locks
PG-FAA Floor Anchors
PG-A Additional Anchors
