Fully Assembled Ready-To-Use KD Lockers

Lockers arrive fully-assembled and include padlocks & strike-plates for true out-of-the-box use. Ready-Built II™ also includes Slope Tops and 6" High Metal Base.

Available in single, double, triple and six tier models All lockers arrive ready-to-use. Lockers ship fully-assembled All units include one combination padlock per door for true out-of-the box use. Padlock Strike Plates are included for six tier doors. Order 3-wide units for best value. Order 1-wide units to complete quantity needed for each continuous row.

Alt

Standard:

Alt

Locks included in stainless steel recessed handles for wardrobe lockers

Standard:

strike-plates

Locks and padlock strike plates are included for box lockers.

Standard:

Alt

Closed Metal Base prevents collection of debris

Standard:

Alt

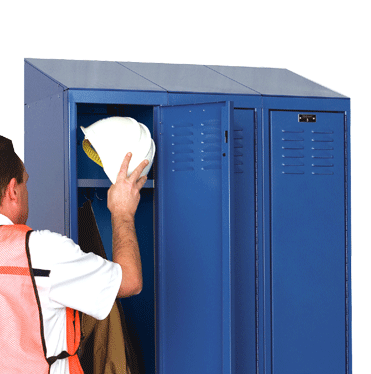

Slope Tops provide a more finished appearance and prevent items from being placed or stored on locker tops.

Features:

Body/Frame:
Knock down (KD) with 24 gauge solid body components. 16 gauge frame with 16 gauge horizontal cross member between doors on double and triple tier wardrobe lockers
Doors:
16 gauge louvered doors, 18 gauge for 9" wide wardrobe and Box doors are standard.
Handle:
Deep-drawn seamless 304 stainless steel recessed handle with multi-point gravity lift-type latching for wardrobe doors. Box doors have friction catch finger pull handle.
Latching:
12 gauge latch hook is welded to frame
Hinges:
16 gauge continuous piano hinge
Hooks:
2-single hooks and 1-double hook is standard. 1- double hook only for triple tier and 1-double and 1 - single hook for 9" wide openings 30” and higher
Shelves:
Hat shelf for single tier openings 60" and 72" high
Legs:
6" high legs are standard. Lockers without legs are available for a nominal charge
Warranty:
2 Year
Alt

Standard:

Alt

Locks included in stainless steel recessed handles for wardrobe lockers

Standard:

strike-plates

Locks and padlock strike plates are included for box lockers.

Standard:

Alt

Closed Metal Base prevents collection of debris

Standard:

Alt

Slope Tops provide a more finished appearance and prevent items from being placed or stored on locker tops.

Color Selection:

See our Color Info Page for more information about colors.Color Info

Browse Photos

Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt
Alt

Notes:

Lockers are fully-assembled. Aluminum number plates (#1-up) with mounting hardware are included. Number plate face is black with silver etched numerals. If a special numbering sequence is required, please specify when ordering. Number sequence must be consecutive numbers equal to the number of openings (doors) ordered.

Ready-Built II™
Single Tier
Product Width Depth Height Opening Height Tier Grouping Openings per Group Assembled
URB1228-1ASB 12 12 78 72 1 1-wide 1
URB3228-1ASB 12 12 78 72 1 3-wide 3
URB1258-1ASB 12 15 78 72 1 1-wide 1
URB3258-1ASB 12 15 78 72 1 3-wide 3
URB1288-1ASB 12 18 78 72 1 1-wide 1
URB3288-1ASB 12 18 78 72 1 3-wide 3
Double Tier
Product Width Depth Height Opening Height Tier Grouping Openings per Group Assembled
URB1228-2ASB 12 12 78 36 2 1-wide 2
URB3228-2ASB 12 12 78 36 2 3-wide 6
URB1258-2ASB 12 15 78 36 2 1-wide 2
URB3258-2ASB 12 15 78 36 2 3-wide 6
URB1288-2ASB 12 18 78 36 2 1-wide 2
URB3288-2ASB 12 18 78 36 2 3-wide 6
Triple Tier
Product Width Depth Height Opening Height Tier Grouping Openings per Group Assembled
URB1228-3ASB 12 12 78 24 3 1-wide 3
URB3228-3ASB 12 12 78 24 3 3-wide 9
URB1258-3ASB 12 15 78 24 3 1-wide 3
URB3258-3ASB 12 15 78 24 3 3-wide 9
URB1288-3ASB 12 18 78 24 3 1-wide 3
URB3288-3ASB 12 18 78 24 3 3-wide 9
Six Tier
Product Width Depth Height Opening Height Tier Grouping Openings per Group Assembled
URB1228-6ASB 12 12 78 12 6 1-wide 6
URB3228-6ASB 12 12 78 12 6 3-wide 18
URB1258-6ASB 12 15 78 12 6 1-wide 6
URB3258-6ASB 12 15 78 12 6 3-wide 18
URB1288-6ASB 12 18 78 12 6 1-wide 6
URB3288-6ASB 12 18 78 12 6 3-wide 18
